<ahp:document ahp:author="" ahp:create-date="" ahp:creator="" ahp:keyword="" ahp:modify-date="" ahp:page-count="" ahp:producer="" ahp:subject="" ahp:title="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:page ahp:height="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:s-id="" ahp:width="">{1,1}</ahp:page>
</ahp:document>

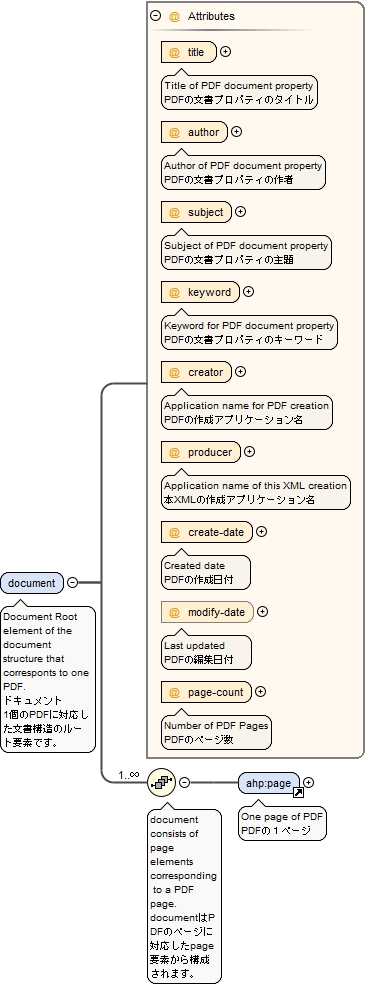

<xs:element name="document">
  <xs:annotation>
    <xs:documentation xml:lang="en">Document Root element of the document structure that corresponts to one PDF.</xs:documentation>
    <xs:documentation xml:lang="ja">ドキュメント 1個のPDFに対応した文書構造のルート要素です。</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="en">document consists of page elements corresponding to a PDF page.</xs:documentation>
        <xs:documentation xml:lang="ja">documentはPDFのページに対応したpage要素から構成されます。</xs:documentation>
      </xs:annotation>
      <xs:element ref="ahp:page"/>
    </xs:sequence>
    <xs:attribute name="title" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Title of PDF document property</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの文書プロパティのタイトル</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="author" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Author of PDF document property</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの文書プロパティの作者</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="subject" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Subject of PDF document property</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの文書プロパティの主題</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="keyword" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Keyword for PDF document property</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの文書プロパティのキーワード</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="creator" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Application name for PDF creation</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの作成アプリケーション名</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="producer" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Application name of this XML creation</xs:documentation>
        <xs:documentation xml:lang="ja">本XMLの作成アプリケーション名</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="create-date" type="xs:dateTime" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Created date</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの作成日付</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="modify-date" type="xs:dateTime">
      <xs:annotation>
        <xs:documentation xml:lang="en">Last updated</xs:documentation>
        <xs:documentation xml:lang="ja">PDFの編集日付</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="page-count" type="xs:positiveInteger" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Number of PDF Pages</xs:documentation>
        <xs:documentation xml:lang="ja">PDFのページ数</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

<ahp:page ahp:height="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:s-id="" ahp:width="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:header ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="">{0,1}</ahp:header>

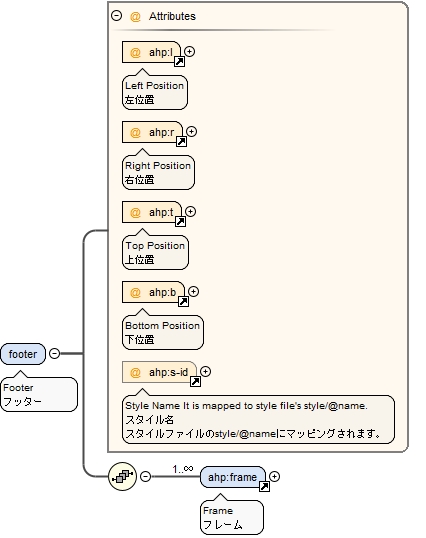

  <ahp:footer ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="">{0,1}</ahp:footer>

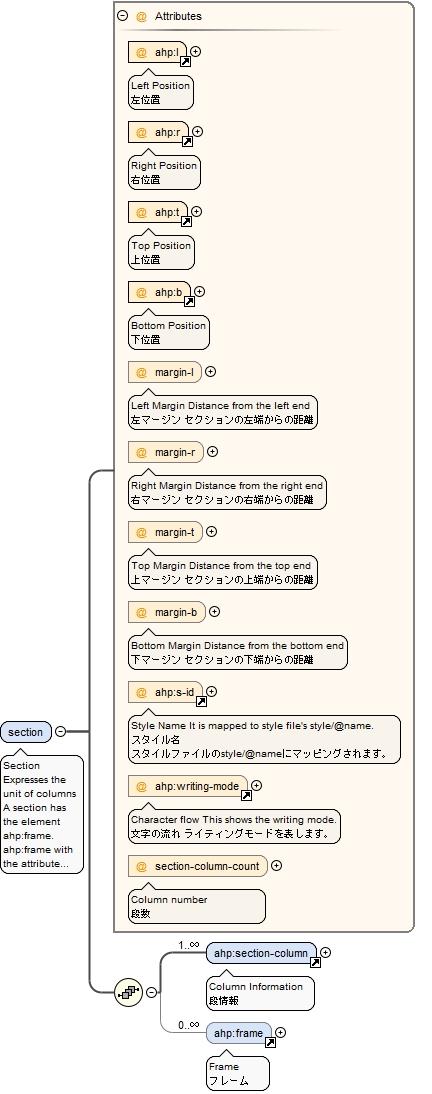

  <ahp:section ahp:b="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:r="" ahp:section-column-count="1" ahp:s-id="" ahp:t="" ahp:writing-mode="horizontal">{1,unbounded}</ahp:section>
</ahp:page>

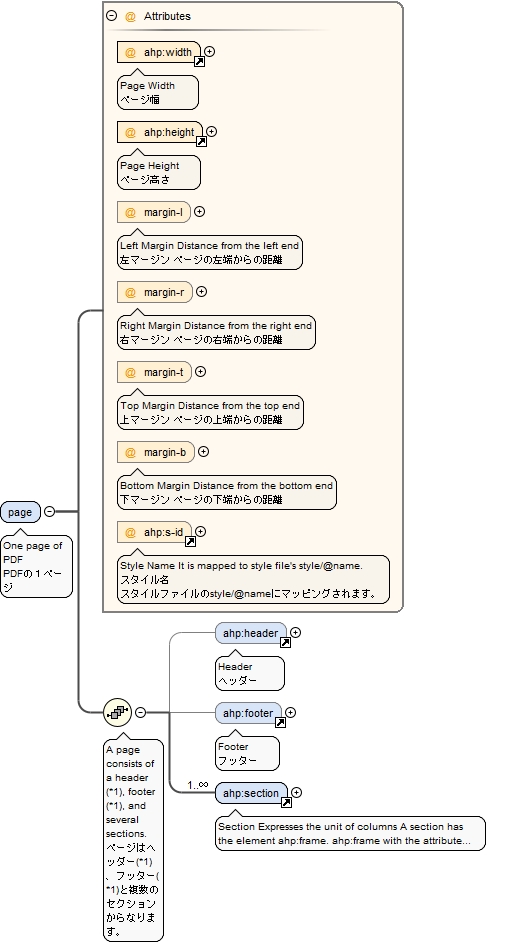

<xs:element name="page">
  <xs:annotation>
    <xs:documentation xml:lang="en">One page of PDF</xs:documentation>
    <xs:documentation xml:lang="ja">PDFの１ページ</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:annotation>
        <xs:documentation xml:lang="en">A page consists of a header (*1), footer (*1), and several sections.</xs:documentation>
        <xs:documentation xml:lang="ja">ページはヘッダー(*1)、フッター(*1)と複数のセクションからなります。</xs:documentation>
      </xs:annotation>
      <xs:element ref="ahp:header" minOccurs="0"/>
      <xs:element ref="ahp:footer" minOccurs="0"/>
      <xs:element ref="ahp:section" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:width" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Page Width</xs:documentation>
        <xs:documentation xml:lang="ja">ページ幅</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:height" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Page Height</xs:documentation>
        <xs:documentation xml:lang="ja">ページ高さ</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-l" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Left Margin Distance from the left end</xs:documentation>
        <xs:documentation xml:lang="ja">左マージン ページの左端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-r" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Right Margin Distance from the right end</xs:documentation>
        <xs:documentation xml:lang="ja">右マージン ページの右端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-t" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Top Margin Distance from the top end</xs:documentation>
        <xs:documentation xml:lang="ja">上マージン ページの上端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-b" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Bottom Margin Distance from the bottom end</xs:documentation>
        <xs:documentation xml:lang="ja">下マージン ページの下端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:s-id"/>
  </xs:complexType>
</xs:element>

<ahp:header ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:frame ahp:b="" ahp:file-id="" ahp:flip-horizontal="" ahp:flip-vertical="" ahp:frame-type="" ahp:hlink="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:name="" ahp:ope-no="" ahp:page-no="" ahp:r="" ahp:rotation="" ahp:s-id="" ahp:str-no="" ahp:t="" ahp:writing-mode="horizontal" ahp:z-order="">{1,unbounded}</ahp:frame>
</ahp:header>

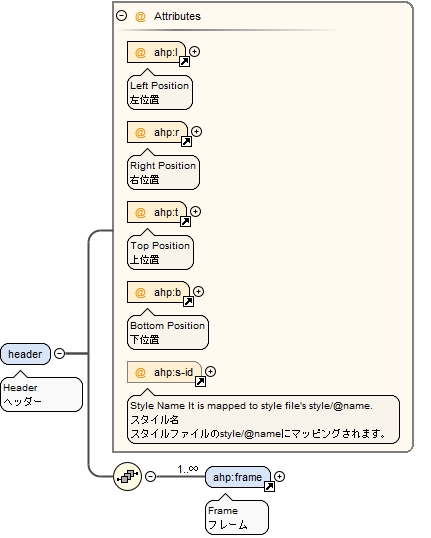

<xs:element name="header">
  <xs:annotation>
    <xs:documentation xml:lang="en">Header</xs:documentation>
    <xs:documentation xml:lang="ja">ヘッダー</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:frame" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:s-id"/>
  </xs:complexType>
</xs:element>

<ahp:frame ahp:b="" ahp:file-id="" ahp:flip-horizontal="" ahp:flip-vertical="" ahp:frame-type="" ahp:hlink="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:name="" ahp:ope-no="" ahp:page-no="" ahp:r="" ahp:rotation="" ahp:s-id="" ahp:str-no="" ahp:t="" ahp:writing-mode="horizontal" ahp:z-order="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:p ahp:b="" ahp:l="" ahp:name="" ahp:r="" ahp:s-id="standard-p" ahp:t="">{1,unbounded}</ahp:p>

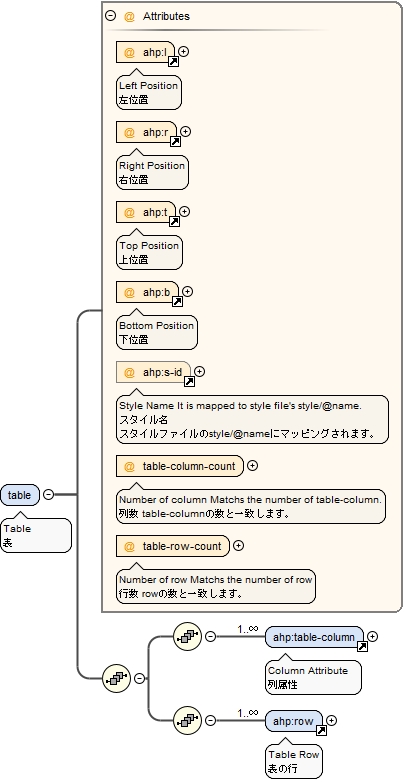

  <ahp:table ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="" ahp:table-column-count="" ahp:table-row-count="">{1,1}</ahp:table>
</ahp:frame>

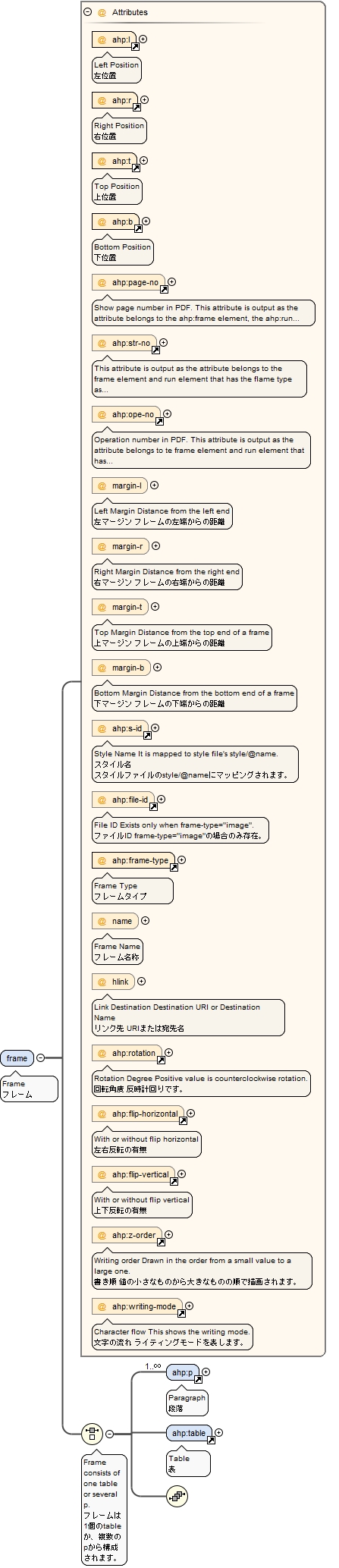

<xs:element name="frame">
  <xs:annotation>
    <xs:documentation xml:lang="en">Frame</xs:documentation>
    <xs:documentation xml:lang="ja">フレーム</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice>
      <xs:annotation>
        <xs:documentation xml:lang="en">Frame consists of one table or several p.</xs:documentation>
        <xs:documentation xml:lang="ja">フレームは1個のtableか、複数のpから構成されます。</xs:documentation>
      </xs:annotation>
      <xs:element ref="ahp:p" maxOccurs="unbounded"/>
      <xs:element ref="ahp:table"/>
      <xs:sequence>
      </xs:sequence>
    </xs:choice>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:page-no"/>
    <xs:attribute ref="ahp:str-no"/>
    <xs:attribute ref="ahp:ope-no"/>
    <xs:attribute name="margin-l" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Left Margin Distance from the left end</xs:documentation>
        <xs:documentation xml:lang="ja">左マージン フレームの左端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-r" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Right Margin Distance from the right end</xs:documentation>
        <xs:documentation xml:lang="ja">右マージン フレームの右端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-t" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Top Margin Distance from the top end of a frame</xs:documentation>
        <xs:documentation xml:lang="ja">上マージン フレームの上端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-b" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Bottom Margin Distance from the bottom end of a frame</xs:documentation>
        <xs:documentation xml:lang="ja">下マージン フレームの下端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:s-id"/>
    <xs:attribute ref="ahp:file-id">
      <xs:annotation>
        <xs:documentation xml:lang="en">File ID Exists only when frame-type="image".</xs:documentation>
        <xs:documentation xml:lang="ja">ファイルID frame-type="image"の場合のみ存在。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:frame-type" use="required"/>
    <xs:attribute name="name" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en">Frame Name</xs:documentation>
        <xs:documentation xml:lang="ja">フレーム名称</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="hlink" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en">Link Destination Destination URI or Destination Name</xs:documentation>
        <xs:documentation xml:lang="ja">リンク先 URIまたは宛先名</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:rotation"/>
    <xs:attribute ref="ahp:flip-horizontal"/>
    <xs:attribute ref="ahp:flip-vertical"/>
    <xs:attribute ref="ahp:z-order"/>
    <xs:attribute ref="ahp:writing-mode" default="horizontal"/>
  </xs:complexType>
</xs:element>

<ahp:p ahp:b="" ahp:l="" ahp:name="" ahp:r="" ahp:s-id="standard-p" ahp:t="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:line ahp:b="" ahp:l="" ahp:r="" ahp:t="">{0,unbounded}</ahp:line>
</ahp:p>

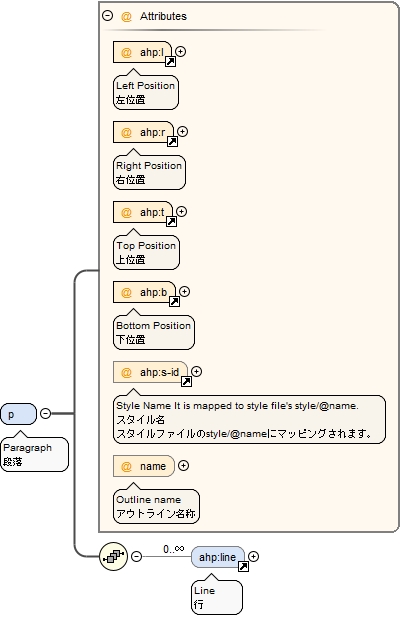

<xs:element name="p">
  <xs:annotation>
    <xs:documentation xml:lang="en">Paragraph</xs:documentation>
    <xs:documentation xml:lang="ja">段落</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:line" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:s-id" default="standard-p"/>
    <xs:attribute name="name" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en">Outline name</xs:documentation>
        <xs:documentation xml:lang="ja">アウトライン名称</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

<ahp:line ahp:b="" ahp:l="" ahp:r="" ahp:t="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:run ahp:add-space="" ahp:b="" ahp:changed-space="" ahp:c-id="" ahp:dest="" ahp:hlink="" ahp:l="" ahp:name="" ahp:ope-no="" ahp:page-no="" ahp:pageno-block="" ahp:r="" ahp:s-id="standard-text" ahp:str-no="" ahp:t="" ahp:z-order="">{1,unbounded}</ahp:run>
</ahp:line>

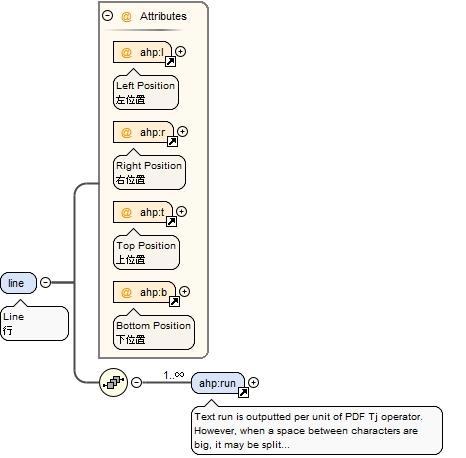

<xs:element name="line">
  <xs:annotation>
    <xs:documentation xml:lang="en">Line</xs:documentation>
    <xs:documentation xml:lang="ja">行</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:run" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
  </xs:complexType>
</xs:element>

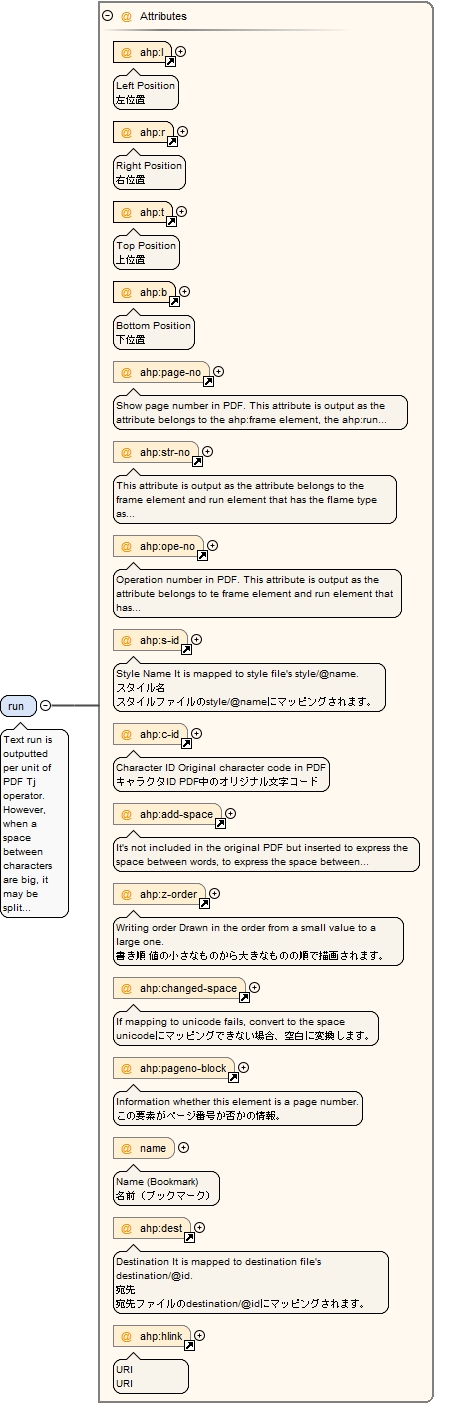

<xs:element name="run">
  <xs:annotation>
    <xs:documentation xml:lang="en">Text run is outputted per unit of PDF Tj operator. However, when a space between characters are big, it may be split into several runs. Space between characters or words may be replaced with a space character. For a character inserted as a space between characters or words becomes add-space="true" in character style.</xs:documentation>
    <xs:documentation xml:lang="ja">テキスト runはPDFのTjオペレータの単位で出力します。 しかし、文字間スペースが大きい場合は、複数のrunに分割される場合があります。 文字間空白、単語間空白は空白文字で置き換える場合があります。 文字間空白、単語間空白として挿入した文字は、add-space =“true”が付きます。</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:page-no"/>
    <xs:attribute ref="ahp:str-no"/>
    <xs:attribute ref="ahp:ope-no"/>
    <xs:attribute ref="ahp:s-id" default="standard-text"/>
    <xs:attribute ref="ahp:c-id" use="optional"/>
    <xs:attribute ref="ahp:add-space" use="optional"/>
    <xs:attribute ref="ahp:z-order"/>
    <xs:attribute ref="ahp:changed-space"/>
    <xs:attribute ref="ahp:pageno-block"/>
    <xs:attribute name="name" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en">Name (Bookmark)</xs:documentation>
        <xs:documentation xml:lang="ja">名前（ブックマーク）</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:dest"/>
    <xs:attribute ref="ahp:hlink"/>
  </xs:complexType>
</xs:element>

<ahp:table ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="" ahp:table-column-count="" ahp:table-row-count="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:table-column ahp:width="">{1,unbounded}</ahp:table-column>
  <ahp:row ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="">{1,unbounded}</ahp:row>
</ahp:table>

<xs:element name="table">
  <xs:annotation>
    <xs:documentation xml:lang="en">Table</xs:documentation>
    <xs:documentation xml:lang="ja">表</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:sequence>
        <xs:element ref="ahp:table-column" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:sequence>
        <xs:element ref="ahp:row" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:s-id"/>
    <xs:attribute name="table-column-count" type="xs:positiveInteger" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Number of column Matchs the number of table-column.</xs:documentation>
        <xs:documentation xml:lang="ja">列数 table-columnの数と一致します。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="table-row-count" type="xs:positiveInteger" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Number of row Matchs the number of row</xs:documentation>
        <xs:documentation xml:lang="ja">行数 rowの数と一致します。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

<xs:element name="table-column">
  <xs:annotation>
    <xs:documentation xml:lang="en">Column Attribute</xs:documentation>
    <xs:documentation xml:lang="ja">列属性</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute ref="ahp:width" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Column Width</xs:documentation>
        <xs:documentation xml:lang="ja">列幅</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

<ahp:row ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:cell ahp:b="" ahp:bound="false" ahp:bound-first="false" ahp:bound-horizontal-num="" ahp:bound-vertical-num="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:r="" ahp:s-id="" ahp:t="">{1,unbounded}</ahp:cell>
</ahp:row>

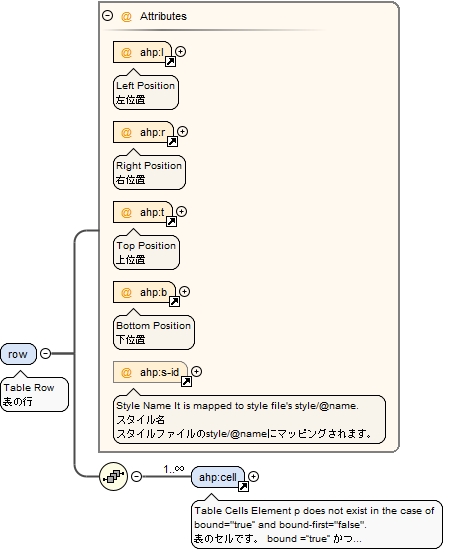

<xs:element name="row">
  <xs:annotation>
    <xs:documentation xml:lang="en">Table Row</xs:documentation>
    <xs:documentation xml:lang="ja">表の行</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:cell" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:s-id"/>
  </xs:complexType>
</xs:element>

<ahp:cell ahp:b="" ahp:bound="false" ahp:bound-first="false" ahp:bound-horizontal-num="" ahp:bound-vertical-num="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:r="" ahp:s-id="" ahp:t="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:p ahp:b="" ahp:l="" ahp:name="" ahp:r="" ahp:s-id="standard-p" ahp:t="">{0,unbounded}</ahp:p>
</ahp:cell>

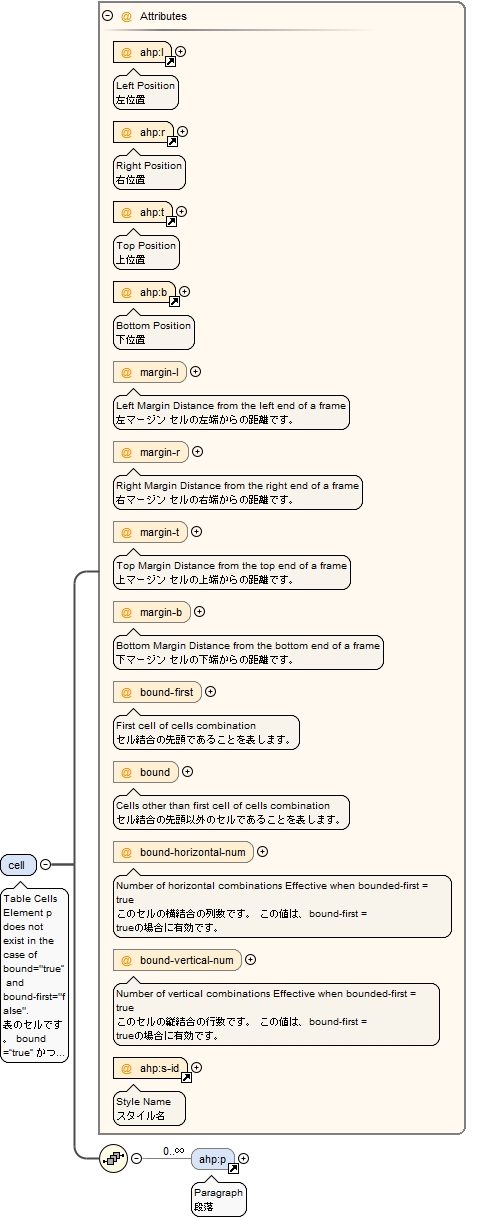

<xs:element name="cell">
  <xs:annotation>
    <xs:documentation xml:lang="en">Table Cells Element p does not exist in the case of bound="true” and bound-first="false".</xs:documentation>
    <xs:documentation xml:lang="ja">表のセルです。 bound =“true” かつ bound-first =“false”の場合は、要素pは存在しません。</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:p" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute name="margin-l" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Left Margin Distance from the left end of a frame</xs:documentation>
        <xs:documentation xml:lang="ja">左マージン セルの左端からの距離です。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-r" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Right Margin Distance from the right end of a frame</xs:documentation>
        <xs:documentation xml:lang="ja">右マージン セルの右端からの距離です。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-t" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Top Margin Distance from the top end of a frame</xs:documentation>
        <xs:documentation xml:lang="ja">上マージン セルの上端からの距離です。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-b" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Bottom Margin Distance from the bottom end of a frame</xs:documentation>
        <xs:documentation xml:lang="ja">下マージン セルの下端からの距離です。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="bound-first" type="xs:boolean" default="false">
      <xs:annotation>
        <xs:documentation xml:lang="en">First cell of cells combination</xs:documentation>
        <xs:documentation xml:lang="ja">セル結合の先頭であることを表します。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="bound" type="xs:boolean" default="false">
      <xs:annotation>
        <xs:documentation xml:lang="en">Cells other than first cell of cells combination</xs:documentation>
        <xs:documentation xml:lang="ja">セル結合の先頭以外のセルであることを表します。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="bound-horizontal-num" type="xs:positiveInteger" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Number of horizontal combinations Effective when bounded-first = true</xs:documentation>
        <xs:documentation xml:lang="ja">このセルの横結合の列数です。 この値は、bound-first = trueの場合に有効です。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="bound-vertical-num" type="xs:positiveInteger" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Number of vertical combinations Effective when bounded-first = true</xs:documentation>
        <xs:documentation xml:lang="ja">このセルの縦結合の行数です。 この値は、bound-first = trueの場合に有効です。</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:s-id" use="required">
      <xs:annotation>
        <xs:documentation xml:lang="en">Style Name</xs:documentation>
        <xs:documentation xml:lang="ja">スタイル名</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

<ahp:footer ahp:b="" ahp:l="" ahp:r="" ahp:s-id="" ahp:t="" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:frame ahp:b="" ahp:file-id="" ahp:flip-horizontal="" ahp:flip-vertical="" ahp:frame-type="" ahp:hlink="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:name="" ahp:ope-no="" ahp:page-no="" ahp:r="" ahp:rotation="" ahp:s-id="" ahp:str-no="" ahp:t="" ahp:writing-mode="horizontal" ahp:z-order="">{1,unbounded}</ahp:frame>
</ahp:footer>

<xs:element name="footer">
  <xs:annotation>
    <xs:documentation xml:lang="en">Footer</xs:documentation>
    <xs:documentation xml:lang="ja">フッター</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:frame" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute ref="ahp:s-id"/>
  </xs:complexType>
</xs:element>

<ahp:section ahp:b="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:r="" ahp:section-column-count="1" ahp:s-id="" ahp:t="" ahp:writing-mode="horizontal" xmlns:ahp="http://www.antennahouse.com/names/PDF/AHPDFXML">
  <ahp:section-column ahp:end="" ahp:start="">{1,unbounded}</ahp:section-column>
  <ahp:frame ahp:b="" ahp:file-id="" ahp:flip-horizontal="" ahp:flip-vertical="" ahp:frame-type="" ahp:hlink="" ahp:l="" ahp:margin-b="" ahp:margin-l="" ahp:margin-r="" ahp:margin-t="" ahp:name="" ahp:ope-no="" ahp:page-no="" ahp:r="" ahp:rotation="" ahp:s-id="" ahp:str-no="" ahp:t="" ahp:writing-mode="horizontal" ahp:z-order="">{0,unbounded}</ahp:frame>
</ahp:section>

<xs:element name="section">
  <xs:annotation>
    <xs:documentation xml:lang="en">Section Expresses the unit of columns A section has the element ahp:frame. ahp:frame with the attribute ahp:frame-type="textbox", ahp:frame-type="textbox-table", or ahp:frame-type="image" will be output together in a section at the top of the page.</xs:documentation>
    <xs:documentation xml:lang="ja">セクション 段組単位を表します。 セクションは要素ahp:frameを持ちます。 アトリビュートがahp:frame-type="textbox"、ahp:frame-type="textbox-table"、ahp:frame-type="image"のahp:frameは、ページの先頭のセクションにまとめて出力されます。</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ahp:section-column" minOccurs="1" maxOccurs="unbounded"/>
      <xs:element ref="ahp:frame" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute ref="ahp:l" use="required"/>
    <xs:attribute ref="ahp:r" use="required"/>
    <xs:attribute ref="ahp:t" use="required"/>
    <xs:attribute ref="ahp:b" use="required"/>
    <xs:attribute name="margin-l" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Left Margin Distance from the left end</xs:documentation>
        <xs:documentation xml:lang="ja">左マージン セクションの左端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-r" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Right Margin Distance from the right end</xs:documentation>
        <xs:documentation xml:lang="ja">右マージン セクションの右端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-t" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Top Margin Distance from the top end</xs:documentation>
        <xs:documentation xml:lang="ja">上マージン セクションの上端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="margin-b" type="ahp:lengthType" use="optional">
      <xs:annotation>
        <xs:documentation xml:lang="en">Bottom Margin Distance from the bottom end</xs:documentation>
        <xs:documentation xml:lang="ja">下マージン セクションの下端からの距離</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute ref="ahp:s-id"/>
    <xs:attribute ref="ahp:writing-mode" default="horizontal"/>
    <xs:attribute name="section-column-count" type="xs:positiveInteger" default="1">
      <xs:annotation>
        <xs:documentation xml:lang="en">Column number</xs:documentation>
        <xs:documentation xml:lang="ja">段数</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

<xs:element name="section-column">
  <xs:annotation>
    <xs:documentation xml:lang="en">Column Information</xs:documentation>
    <xs:documentation xml:lang="ja">段情報</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute ref="ahp:start" use="required"/>
    <xs:attribute ref="ahp:end" use="required"/>
  </xs:complexType>
</xs:element>

<xs:attribute name="name" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en">Name (Bookmark)</xs:documentation>
    <xs:documentation xml:lang="ja">名前（ブックマーク）</xs:documentation>
  </xs:annotation>
</xs:attribute>

<xs:attribute name="name" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en">Outline name</xs:documentation>
    <xs:documentation xml:lang="ja">アウトライン名称</xs:documentation>
  </xs:annotation>
</xs:attribute>

<xs:attribute name="margin-l" type="ahp:lengthType" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en">Left Margin Distance from the left end of a frame</xs:documentation>
    <xs:documentation xml:lang="ja">左マージン セルの左端からの距離です。</xs:documentation>
  </xs:annotation>
</xs:attribute>

<xs:attribute name="margin-r" type="ahp:lengthType" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en">Right Margin Distance from the right end of a frame</xs:documentation>
    <xs:documentation xml:lang="ja">右マージン セルの右端からの距離です。</xs:documentation>
  </xs:annotation>
</xs:attribute>

<xs:attribute name="margin-t" type="ahp:lengthType" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en">Top Margin Distance from the top end of a frame</xs:documentation>
    <xs:documentation xml:lang="ja">上マージン セルの上端からの距離です。</xs:documentation>
  </xs:annotation>
</xs:attribute>

<xs:attribute name="margin-b" type="ahp:lengthType" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="en">Bottom Margin Distance from the bottom end of a frame</xs:documentation>
    <xs:documentation xml:lang="ja">下マージン セルの下端からの距離です。</xs:documentation>
  </xs:annotation>
</xs:attribute>

<xs:attribute name="bound-first" type="xs:boolean" default="false">
  <xs:annotation>
    <xs:documentation xml:lang="en">First cell of cells combination</xs:documentation>
    <xs:documentation xml:lang="ja">セル結合の先頭であることを表します。</xs:documentation>
  </xs:annotation>
</xs:attribute>
